The difference between Coffs Harbour's coastal suburbs like Sapphire Beach and the hilly areas around Karangi tells you everything about why a GPR survey matters here. Sandy soils near the beach allow radar waves to penetrate deeper with less attenuation, while the clay-rich volcanic soils further inland can scatter signals quickly. In our experience, a GPR (Ground Penetrating Radar) survey in Coffs Harbour needs to account for this variability before you start interpreting anomalies. We pair the radar readings with a density test with sand cone when we need to correlate signal speed with soil compaction in fill zones.
Adjusting antenna frequency based on local soil conductivity is not optional in Coffs Harbour — it determines whether you find the void or miss it entirely.
Method and coverage
A common mistake we see among local builders is assuming GPR works the same everywhere in Coffs Harbour. They run one calibration line on a sandy patch and then expect identical performance on a clay slope near the Botanic Garden. That approach leads to missed voids or buried services that should have been caught. Our team adjusts antenna frequency and gain settings based on the specific soil profile of each site. For zones with high electrical conductivity, we lower the frequency to maintain depth penetration. We also cross-reference radar reflections with test pits to verify ambiguous readings before finalising the survey report. The result is a reliable map of what lies beneath, not just a pretty radargram.

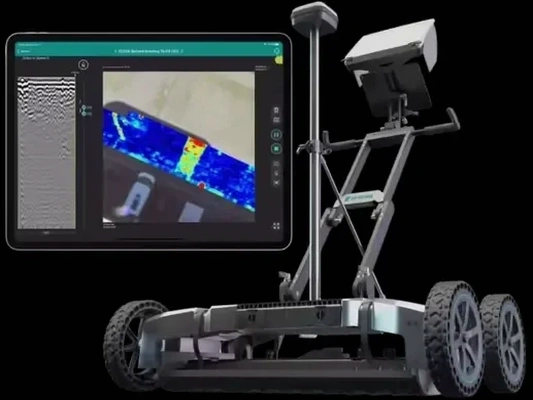

Technical reference image — Coffs Harbour
Regional considerations
A retaining wall project on the slopes of Macauleys Head Drive ran into trouble because the contractor used a generic GPR scan from a previous job. They missed a buried stormwater pipe that ran diagonally across the excavation line. The pipe fractured during trenching, causing a one-week delay and a AU$4,200 repair bill. A proper GPR survey in Coffs Harbour, tailored to the local soil conditions and site layout, would have flagged that pipe at the planning stage. The cost of the survey was less than a tenth of the repair.
CAD-compatible plan with depth slices and cross-sections
Related services
01
Utility and Void Detection Survey
Targeted scanning for buried pipes, cables, tanks, and underground voids. Suitable for pre-excavation clearance, roadworks, and building extensions. Delivered as a geo-referenced plan with depth annotations.
02
Geological and Structural Imaging
Deep profiling for bedrock depth, soil layering, and karst features. Used in foundation design, slope stability assessment, and landfill investigations. Processed with advanced filtering to enhance subtle reflectors.
This service complements our laboratory testing work for a complete project analysis.
Standards that apply
AS 1726:2017 Geotechnical Site Investigations, AS 4678:2002 Earth Retaining Structures, AS 1289.7.3 Standard Guide for Using the Surface Ground Penetrating Radar Method
Top questions
What is a GPR survey and how does it work in Coffs Harbour soils?
A GPR survey uses radar pulses to image the subsurface. In Coffs Harbour, the technique works well in sandy coastal soils (up to 8 m depth) but loses penetration in clay-rich volcanic soils (1.5–3 m). We select the antenna frequency based on the target depth and local soil conductivity.
How much does a GPR survey cost in Coffs Harbour?
The cost typically ranges between AU$1,940 and AU$4,040 depending on the site area, target depth, and required resolution. A standard utility detection survey for a residential block of 500 m² usually falls on the lower end of that range.
Can GPR detect plastic pipes or concrete slabs?
Yes, GPR can detect plastic pipes as long as there is a contrast in dielectric permittivity between the pipe and the surrounding soil. Concrete slabs produce strong reflections at the top and bottom interfaces, making them easy to identify. Metal objects produce very strong reflections due to high conductivity.
Do I need a GPR survey before excavating on my Coffs Harbour property?
Absolutely. Coffs Harbour has a mix of stormwater drainage, underground power, and NBN fibre that may not be marked on council plans. A GPR survey reduces the risk of striking a buried service, which can cause injury, project delays, and costly repairs. It also helps identify voids or soft zones that could collapse during excavation.
